Tall Master

• Please thicken the bottom or place extra foundation to reinforce the bottom.
• Please always put the heavy stuff on the bottom level and lighter stuff on the top.
• The installation steps for the left or right opening are the same but in opposite directions. Please pay attention to the installation direction of the horizontal basket slide.
• Please make sure that the horizontal basket has been returned to its original position before closing.
• 400 single basket load capacity : 5KG
  600 single basket load capacity : 7KG
• Taiwan patent M657509

Product Introduction:

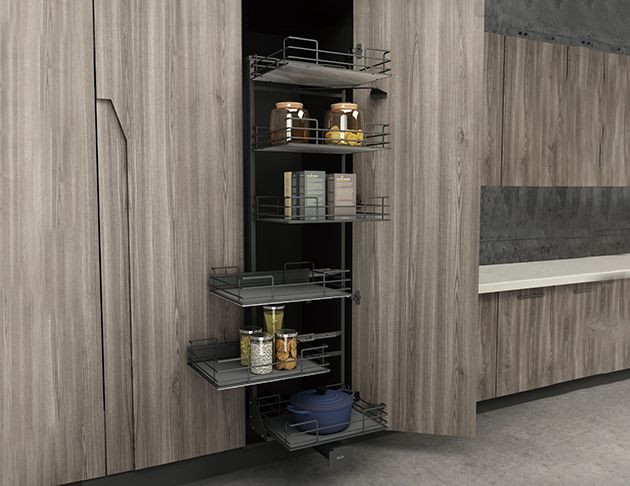

When opening the door, the storage basket automatically slides out, allowing easy access to the items you need!
Furthermore, our patented design enables the upper two layers of the bottom storage basket to effortlessly slide horizontally to the other side of the door panel, eliminating the inconvenience of having to crouch down, peer inside, and reach for items in the lower storage area.
The linkage framework design is simple and sturdy, and it can be used on both the left and right sides, allowing for customization according to your need.

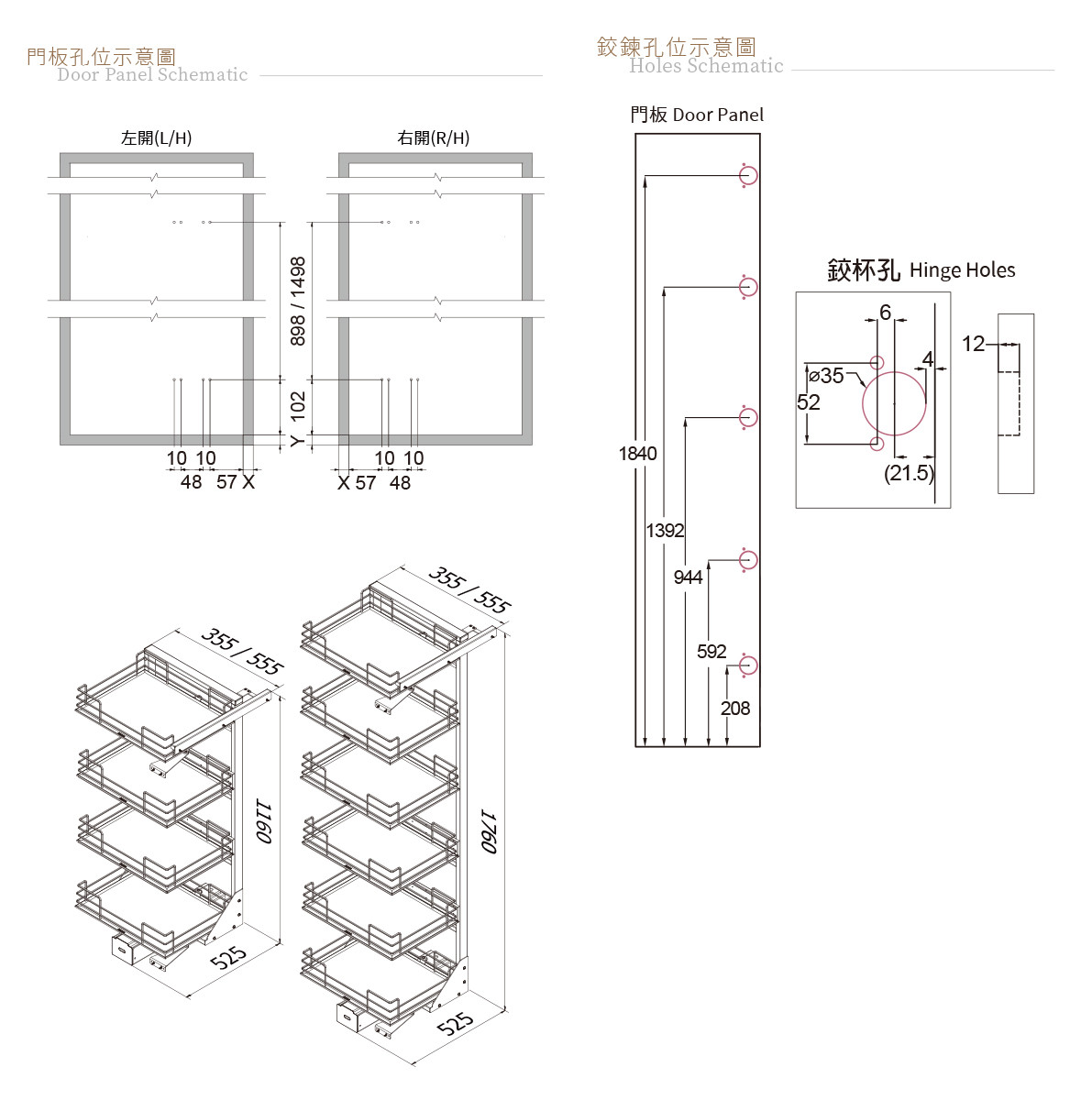

Schematic:
