Single Pull-Down Storage Kit

Description

• Material ：Steel, Dark Gray Epoxy Powder Coating, Compact Laminate Side Board, Acrylic
• Instructions:Pull it out and down to the end. The mechanism can be locked in position.
  After loading, press down again to release the pendulum positioning, and then slowly push the main body upward to make it return to its original position.
• Remarks:The pull-down storage kit does not have an automatic return function. It needs to be manually pushed and returned.
• Inner depth of cabinet ≧ 300 mm
• The hinge should be installed above 12 cm from bottom panel to prevent crash between hinge and product.

Product Introduction

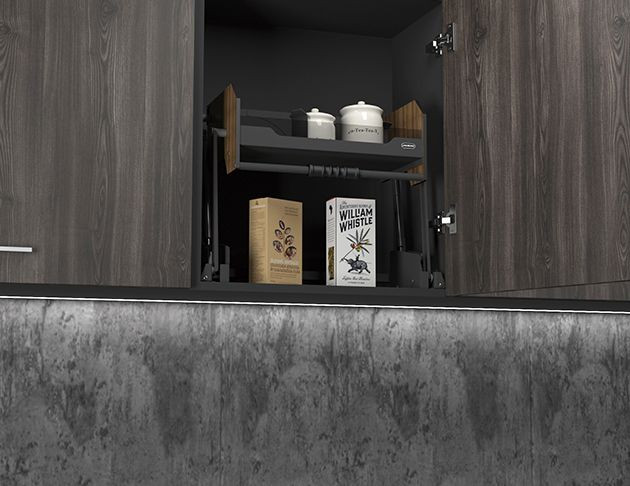

This is a variation of the W02 Lift Cabinet, designed for those who dont require the dual-layer functionality and only want to address the issue of accessing items in the upper storage area.
With its dual-buffer return function, you can effortlessly retrieve and store items by simply pulling down, solving the problem of accessing and utilizing high and hardto- reach spaces effectively.

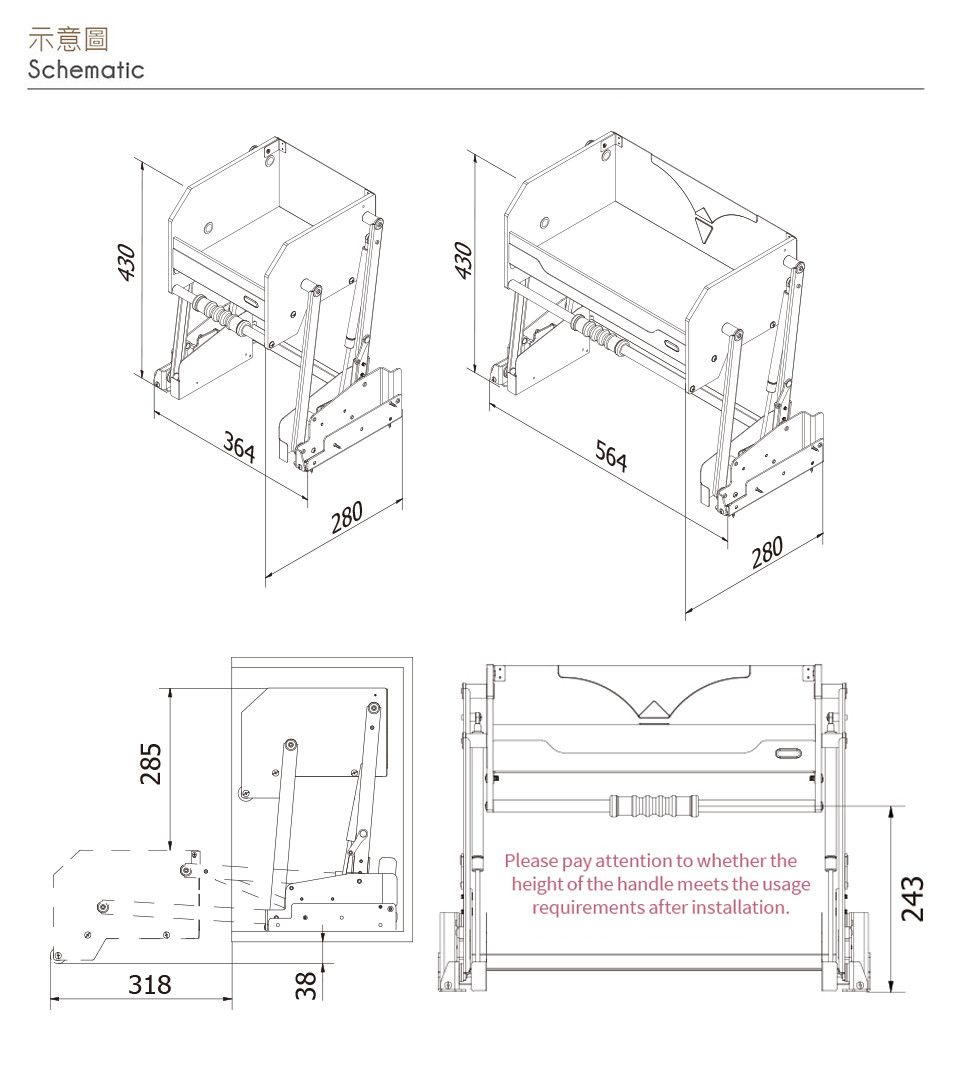

Schematic
